IP Cores
SDB-750/1000

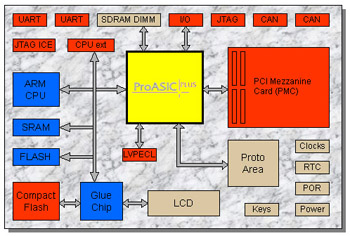

Blockdiagram

Interfaces and Hardware Support

The SDB-1000 is designed to support real System-on-Chip applications. The external CPU can be disabled and replaced with a controller residing inside the ProASICPLUS device. All external resources such as SRAM and FLASH memory are available to the internal CPU. As shown in the system block diagram, a wide range of interfaces are available.

Software Support

The SDB-1000 runs the eCos operating system from RedHat. Ample of system resources such as 2 Mbyte SRAM and up to 16 Mbyte FLASH memory are available for the application program. Software design is supported with the GCC tool suite running on Linux and Windows platforms. The JTAG in-circuit emulator (ICE) interface eases system debugging. Also, a serial port can be used to interface to a GDB running on a host computer. To ease software development, a monitor application is provided using the LCD display, the keyboards and LEDs as the user interface.

Deliverables

The SDB-1000 Kit is ready to use and comes with:

    • Development Board
    • Actel ProASICPlus APA1000
    • 2 MByte SRAM, 4 MByte Flash
    • User Guide
    • Power Supply 4 Amps
    • RS-232 Cable
    • Demo Design

The SDB-750 Kit is shipped with an APA750 FPGA.

Interfaces:

Serial I/O

- UART
- I2C
- CAN
- LVPECL

PMC Slot with

- IEEE P1386.1
- PCIMG 2.15
- 64-bit PCI

CPU Extension Slots

Compact Flash

Documentation

SDB750/1000 Flyer

SDB750/1000 User Guide
